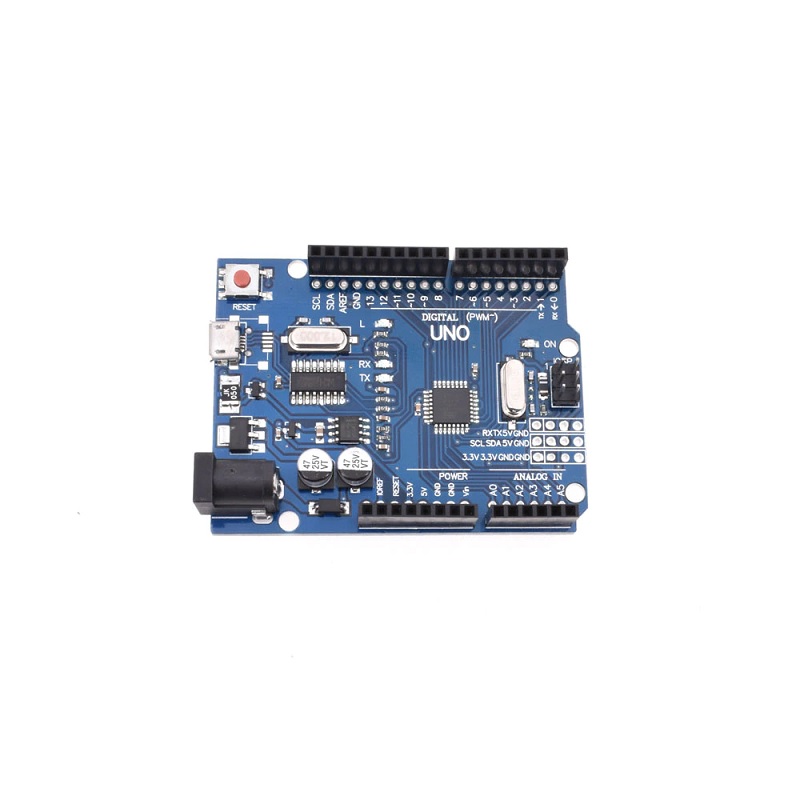

Uno R3 CH340G ATmega328p Development Board Compatible with Arduino

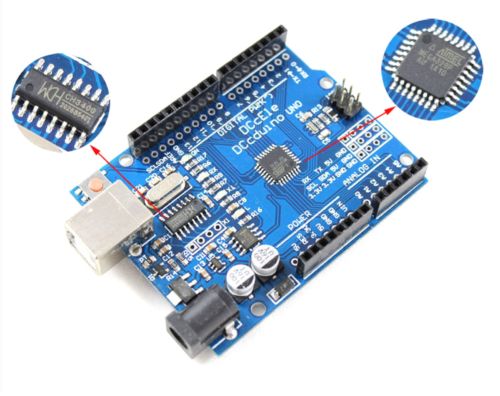

Uno R3 CH340G ATmega328p Development Board Compatible with Arduino - Image 2

Uno R3 CH340G ATmega328p Development Board Compatible with Arduino

₹210.00 Price With Tax

  1. Microcontroller ATmega328 (SMD) – Interface CH340G
  2. Operating Voltage: 5V
  3. Input Voltage (recommended): 7-12V
  4. Input Voltage (limits): 5-20V
  5. Digital I / O Pins 14 (of which 6 provide PWM output)
  6. Analog Input Pins: 6

Availability: 50 in stock

SKU: AA-R3CH340-UNOBOARD Category: Brand:

  • Microcontroller: ATmega328P

  • USB Chipset: CH340G (USB-to-Serial converter)

  • Operating Voltage: 5V

  • Input Voltage (recommended): 7V – 12V DC

  • Input Voltage (limits): 6V – 20V DC

  • Digital I/O Pins: 14 (of which 6 provide PWM output)

  • Analog Input Pins: 6

  • PWM Digital I/O Pins: 6

  • DC Current per I/O Pin: 20 mA

  • DC Current for 3.3V Pin: 50 mA

  • Flash Memory: 32 KB (0.5 KB used by bootloader)

  • SRAM: 2 KB

  • EEPROM: 1 KB

  • Clock Speed: 16 MHz

  • USB Connection: Type-B (via CH340G driver)

  • Communication Interfaces: UART, SPI, I²C (TWI)

  • Power Supply Options: USB or External DC Jack (Barrel Jack)

  • Onboard Components:

    • Reset Button

    • Power LED indicator

    • TX/RX status LEDs

15 Days Warranty

This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.

Warranty will not apply if:

  • The product has been misused, dropped, or damaged.

  • It has been exposed to water, fire, chemicals, or static discharge.

  • It has been tampered with, soldered, or altered in any way.

The Uno R3 CH340G ATmega328p Development Board is the low-cost version of the popular Uno R3 Arduino. It is assembled with the CH340 USB to Serial converter chip, instead of using an Atmega16U2 chip.

We have used plenty of these low-cost Arduino boards with CH340 chips, and have found them to work perfectly. The only time the CH340 chip is used is during programming and when using the serial output of the USB port. During normal operation, this board is identical to the more expensive version without CH340 chip.

Weight 0.50 kg
Dimensions 6.8 × 2 × 5.3 cm
