Sensing Principle: Electrochemical sensor
-
Target Gas: Sulphur Dioxide (SO₂)
-
Measurement Range: 0 – 20 ppm (typical) or custom ranges depending on model
-
Resolution: 0.1 ppm
-
Accuracy: ±5% of full scale
-
Response Time (T90): ≤ 30 seconds
-
Recovery Time: ≤ 60 seconds
-
Output Signal:
-
Analog voltage (0 – 2 V or 0 – 5 V proportional to SO₂ concentration)
-
Optional UART / I²C digital output (depending on version)
-
-
Operating Voltage: 5.0 ± 0.1 V DC
-
Current Consumption: ≤ 50 mA
-
Operating Temperature: -20°C to +50°C
-
Operating Humidity: 15% – 90% RH (non-condensing)
-
Lifetime: ≥ 2 years (typical under normal operating conditions)
Gas sensor
SO2-2000sulphur dioxide sensor module
₹9,000.00 Price With Tax
-
High-accuracy SO₂ detection with advanced electrochemical technology
-
Fast response & stable performance for real-time air quality monitoring
-
Durable, compact, and energy-efficient design
-
Perfect for industrial safety, environmental, and IoT applications
Availability: 50 in stock
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
-
The product has been misused, dropped, or damaged.
-
It has been exposed to water, fire, chemicals, or static discharge.
-
It has been tampered with, soldered, or altered in any way.

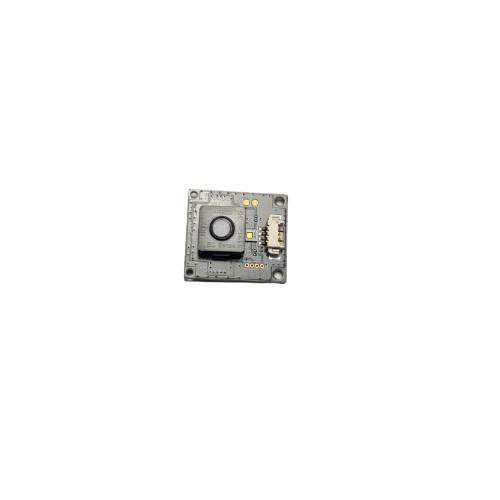

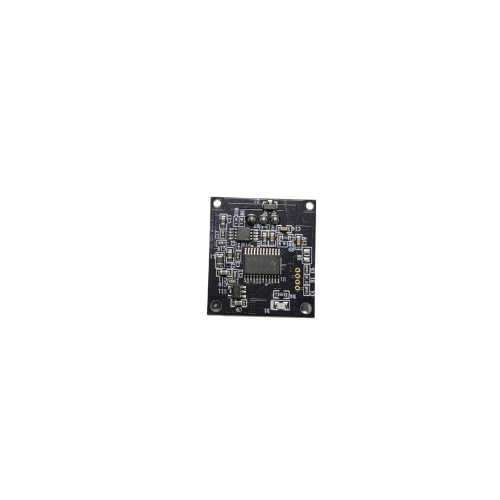

The SO2-2000 Sensor Module is a highly sensitive and reliable gas sensor designed for detecting sulfur dioxide (SO₂) concentrations in air. Using advanced electrochemical sensing technology, it provides accurate, real-time measurements with excellent stability and repeatability.
This module is ideal for industrial safety, environmental monitoring, air quality control, and laboratory applications. Its compact design and easy-to-use interface make integration into monitoring systems and devices straightforward.
| Weight | 0.10 kg |
|---|---|
| Dimensions | 1 × .1 × .5 cm |
