Microcontroller: ATmega328P
USB to Serial Chip: CH340G
Operating Voltage: 5V
Input Voltage (recommended): 7 – 12V
Input Voltage (limits): 6 – 20V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 8
DC Current per I/O Pin: 40 mA (max)
Flash Memory: 32 KB (ATmega328P, 2 KB used by bootloader)
SRAM: 2 KB
EEPROM: 1 KB
Clock Speed: 16 MHz

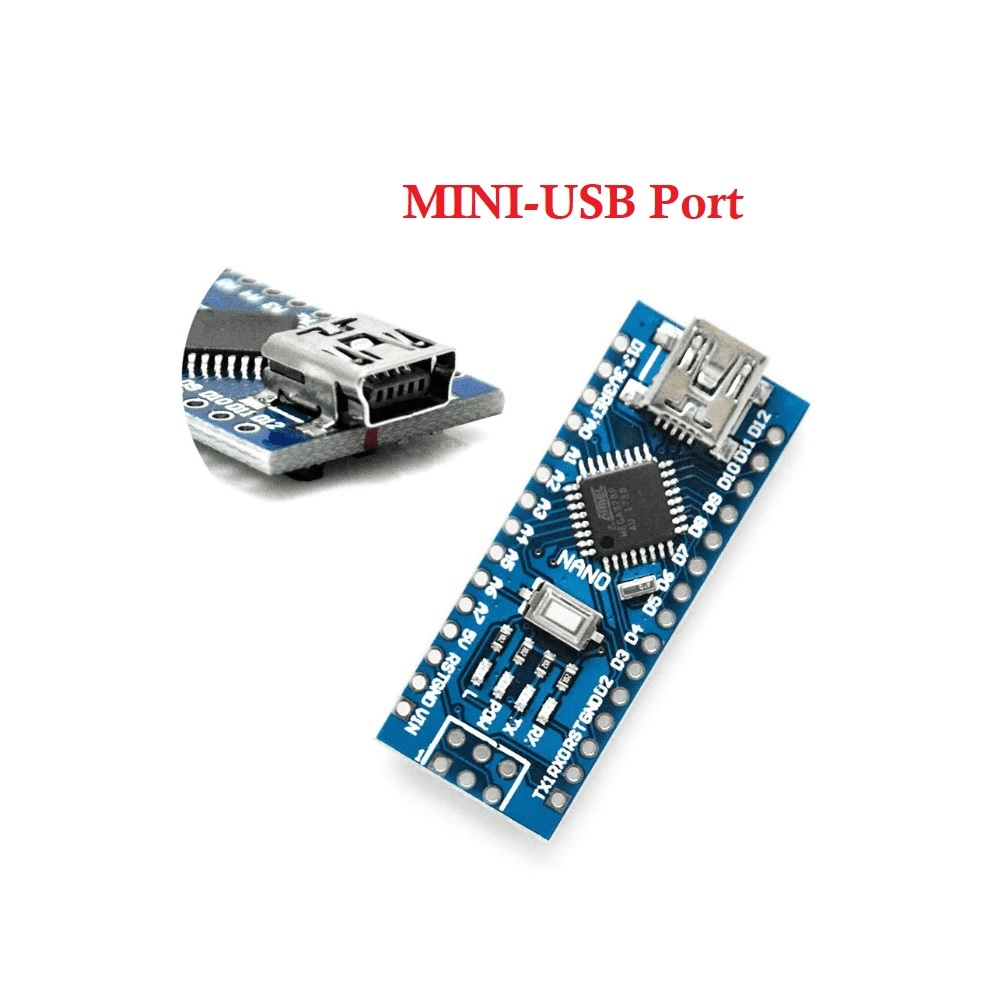

USB Port: Mini-USB (via CH340 chip)

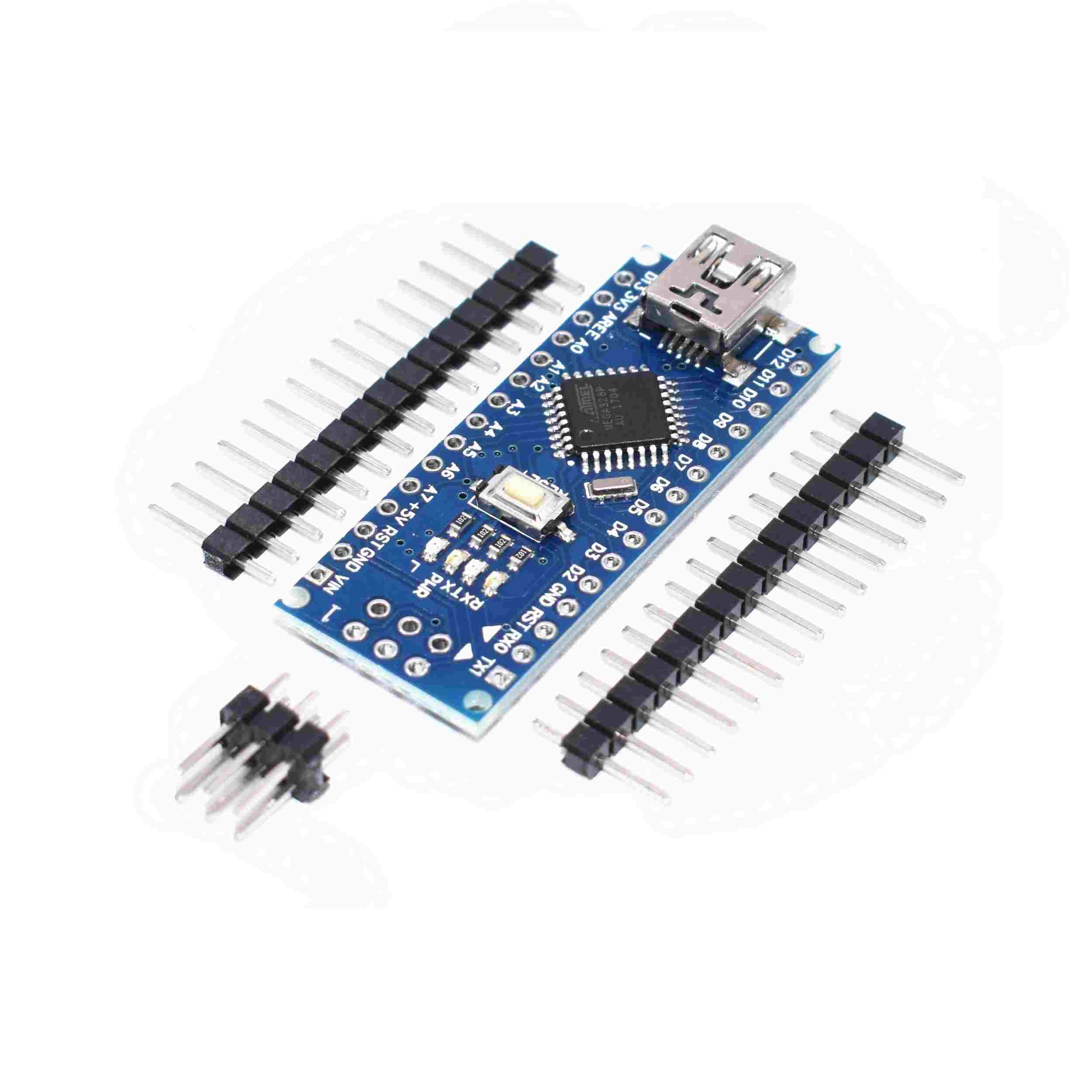

Connector Type: Unsoldered pin headers (included separately)
Communication: UART, SPI, I²C
Reset: Onboard reset button
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
-
The product has been misused, dropped, or damaged.
-
It has been exposed to water, fire, chemicals, or static discharge.
-
It has been tampered with, soldered, or altered in any way.
The Nano Board R3 with CH340 chip without USB Cable chipboard is based on the famous Arduino platform and does all the functions of Uno, but with a smaller footprint. The Nano Board R3 with CH340 chip without USB Cable is vital for your small project where you don’t need much of pin-outs but the small size is very important to make it look good.
This Nano equips a low-cost MINI USB-Serial Chip that makes it less in price than Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano.
The Nano Arduino is a small, complete, and breadboard-friendly board based on the ATmega328 (Nano R3). It has more or less the same functionality of the Uno but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
The Nano can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
The size of Nano V3.0 with CH340 Chip is only 43 mm x 18 mm; it comes with 6 PWM I/O from a total of 14 digitals I/O, 8 analog inputs, 16Mhz clock speed, and 32kB of flash memory.
