₹14,410.00 Price With Tax
Airatom CH₄ electrochemical sensor with wide 0–100 %Vol detection range.
Fast response (≤30s) and reliable ±2% FS accuracy.
Provides RS485/Modbus or analog 4–20 mA output for system integration.
Designed for industrial gas detection, safety monitoring, and leak detection systems.
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
The product has been misused, dropped, or damaged.
It has been exposed to water, fire, chemicals, or static discharge.
It has been tampered with, soldered, or altered in any way.
Measurement Principle: Electrochemical sensing technology
Target Gas: Methane (CH₄)
Measurement Range: 0 – 100 %Vol
Resolution: 0.1 %Vol
Accuracy: ±2 % of full scale
Response Time (T90): ≤30 seconds
Repeatability: ≤2 % of full scale
Zero Drift: ≤2 % of full scale per month
Signal Output: RS485 / Modbus RTU / Analog 4–20 mA (model dependent)
Operating Temperature: -20 °C to +50 °C
Operating Humidity: 15 – 90 % RH (non-condensing)
Operating Pressure: 80 – 120 kPa
Expected Sensor Life: 24 months typical in clean air
Power Supply: 12 – 24 V DC
Housing Material: ABS / Aluminum alloy with IP65 protection
Mounting: Wall or panel installation
The CH4-100%VOL Electrochemical Sensor is a high-performance methane gas detection module designed for industrial safety, mining, oil & gas, and environmental monitoring applications. It provides accurate measurement of methane concentration up to 100% volume, ensuring reliable performance even in high-concentration environments where conventional sensors fail.
Built with advanced electrochemical sensing technology, this sensor offers fast response time, high sensitivity, and long-term stability. Its compact design and robust build make it suitable for integration into portable detectors, fixed gas monitoring systems, and IoT-based safety solutions.

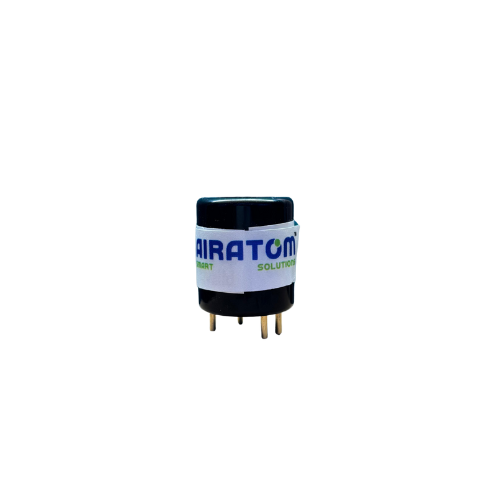

1 x Airatom CH4-0-100%VOL Electrochemical Sensor
| Weight | 0.200 kg |
|---|---|
| Dimensions | 2 × 2 × 3 cm |
