Measurement Principle: Electrochemical sensing technology
-
Measured Parameters: Multi-gas detection (example gases: CO, H₂S, O₂, NH₃ or model-specific set)
-
Measurement Ranges (typical, depending on selected gas modules):
-
Oxygen (O₂): 0 – 25 %Vol
-
Carbon Monoxide (CO): 0 – 1000 ppm
-
Hydrogen Sulfide (H₂S): 0 – 100 ppm
-
Ammonia (NH₃): 0 – 100 ppm
-
-
Resolution:
-
O₂: 0.1 %Vol
-
CO: 1 ppm
-
H₂S: 0.1 ppm
-
NH₃: 1 ppm
-
-
Accuracy: ±2–5 % of full scale (gas dependent)
-
Response Time (T90): ≤30 seconds
-
Output Signal: RS485 / Modbus RTU / Analog 4–20 mA (depending on model)
-
Operating Temperature: -20 °C to +50 °C
-
Operating Humidity: 15 – 90 % RH (non-condensing)
-
Operating Pressure: 80 – 120 kPa
-
Expected Sensor Life: 24–36 months (typical, gas dependent)
-
Power Supply: 12 – 24 V DC
-
Housing Material: ABS / Aluminum alloy with IP65 protection
-
Mounting: Wall or panel installation

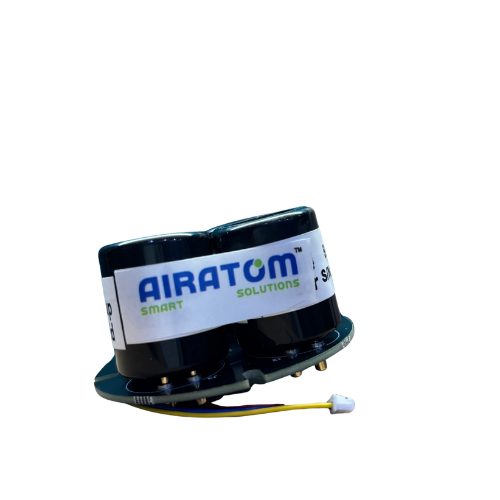

Airatom 4in1 Electrochemical Sensor
₹9,689.00 Price With Tax
-
4-in-1 Electrochemical Gas Sensor Module
-
Detects multiple gases simultaneously (configurable options: CO, NO2, SO2, O3, H2S, etc.)
-
High sensitivity & accuracy with fast response time
-
Low power consumption & long lifespan
-
Suitable for industrial, environmental, and safety monitoring
Availability: 1 in stock (can be backordered)
15 Days Warranty
This product comes with a 15-day warranty starting from the date of delivery. The warranty covers manufacturing defects only. If a defect is confirmed, the item will be replaced.
Warranty will not apply if:
-
The product has been misused, dropped, or damaged.
-
It has been exposed to water, fire, chemicals, or static discharge.
-
It has been tampered with, soldered, or altered in any way
The Airatom 4-in-1 Electrochemical Sensor is a compact, high-performance gas detection module designed to simultaneously monitor four different gases with precision and stability. Using advanced electrochemical sensing technology, this sensor provides accurate, real-time measurements with strong anti-interference capability, low power consumption, and a long operational lifespan.
Its multi-gas detection capability makes it highly suitable for industrial safety, environmental monitoring, air quality systems, and portable gas detectors. With easy integration into IoT devices, monitoring stations, and safety systems, the Airatom 4-in-1 sensor ensures reliable protection and compliance in demanding environments.
Package Includes:
-
1 x Airatom 4in1 Electrochemical Sensor
| Weight | 0.200 kg |
|---|---|
| Dimensions | 6 × 6 × 3 cm |
